Swisscave Dual Zone Wine Cooler WIB178DFP

Swisscave dual zone wine fridge built in WIB-178DFP

Swisscave  meets the highest standards when it comes to storing and maturing wine, resulting in perfect pleasure when drinking it. For optimal wine presentation and temperature control in hotels, restaurants and wine shops (HORECA).Also great for ageing your finest bottles over the years at home. Whether in the kitchen, the lounge, storeroom or basement. Swisscave used wine connoisseurs with extensive expertise to design and test its wine cellars and coolers. Swisscave is famous worldwide for its high standards in functionality and practicality, and its simple, pure design. We paid special attention to the materials used to construct our products: glass, stainless steel, wood – plastic components are notable by their absence.

Please note: This unit has a delivery lead time of 3-4 months.

Warranty 5 years

Download Swisscave Manual

Download Built in Drawing

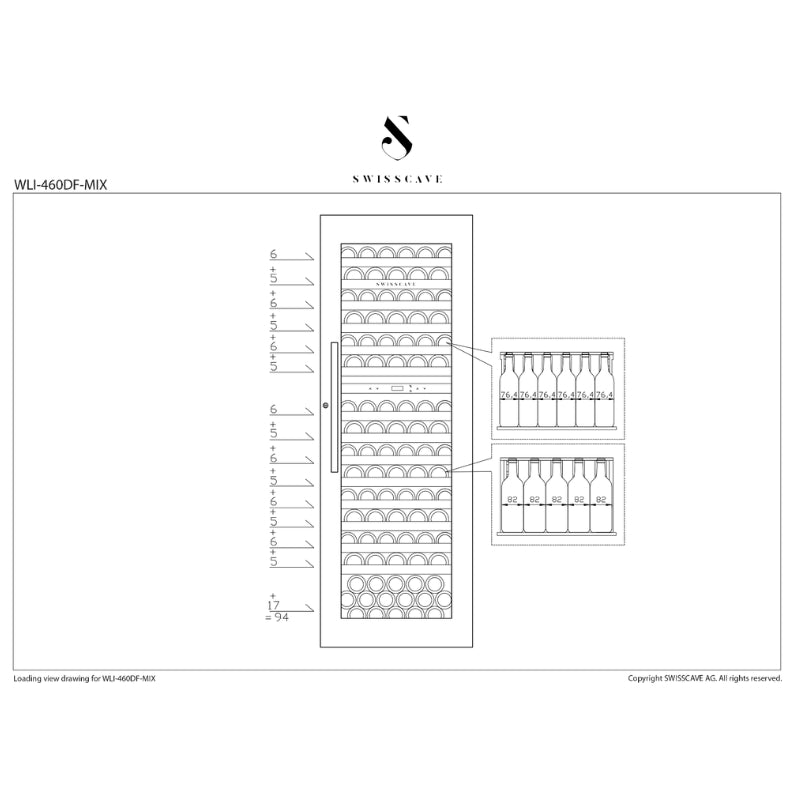

Download Loading View

Download Data Sheet

Product information

• Temperature Zones: 2
• Noise Level: 41 dB(A) sound-absorbing recommendation
• Bottle Capacity: 101 bottles (Bordeaux shape, all shelves inserted), 101 bottles (Bordeaux shape, part of shelves removed)
• Humidity: Recommended range 50-70%
• Temperature Range: Upper Zone: 5°C - 20°C, Lower Zone: 5°C - 20°C
• Power Consumption per Day: 0.44 kWh (approx.)
• Casing: Black coated steel
• Door Glazing: Fully glazed UV-resistant, gas-filled with low energy panes (3-layer glazing)
• Door Lock: No

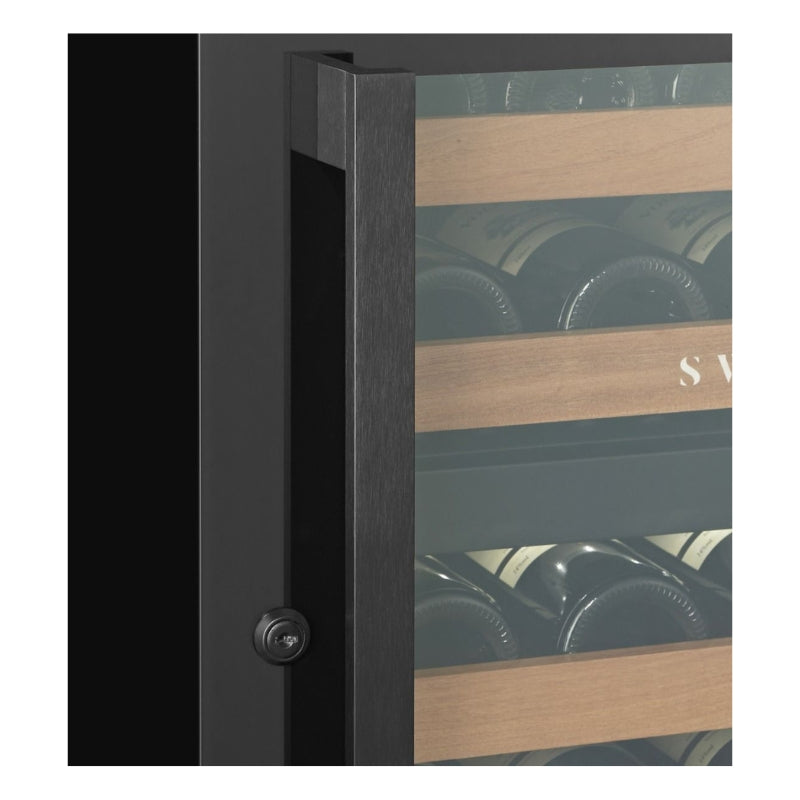

• Door Handle: Anodised, brushed aluminium
• Door Hinge: Right (convertible to left)

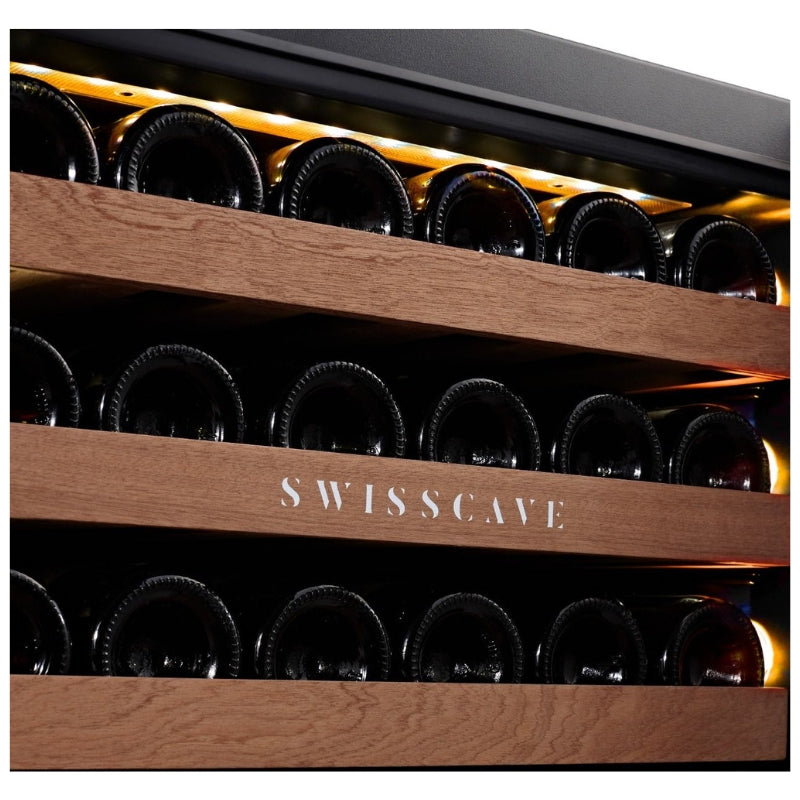

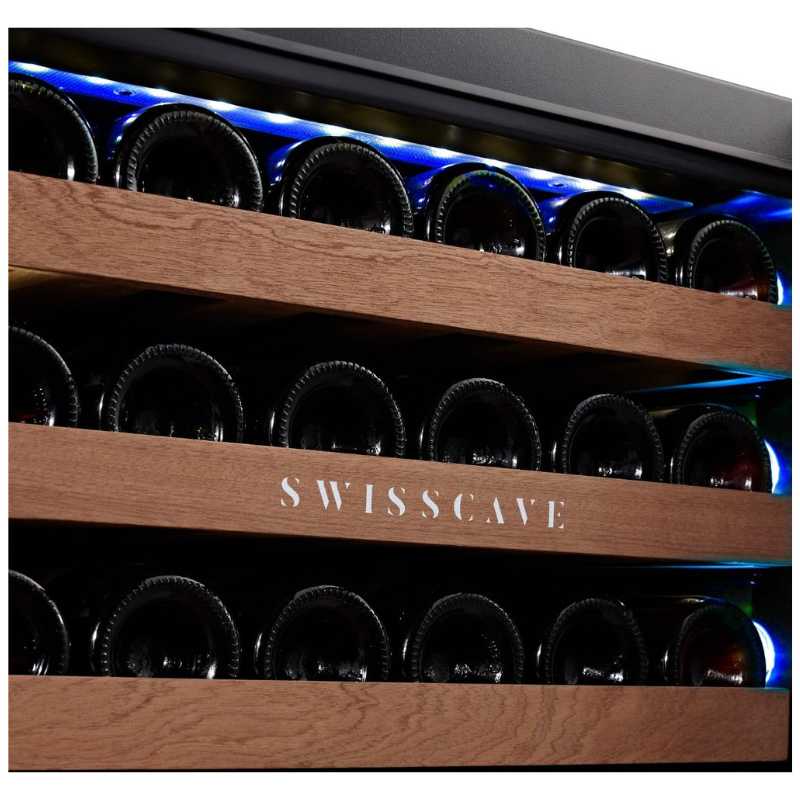

• Lighting: All-around illumination (white, blue, amber - adjustable)
• Lighting On/Off Switch: Yes

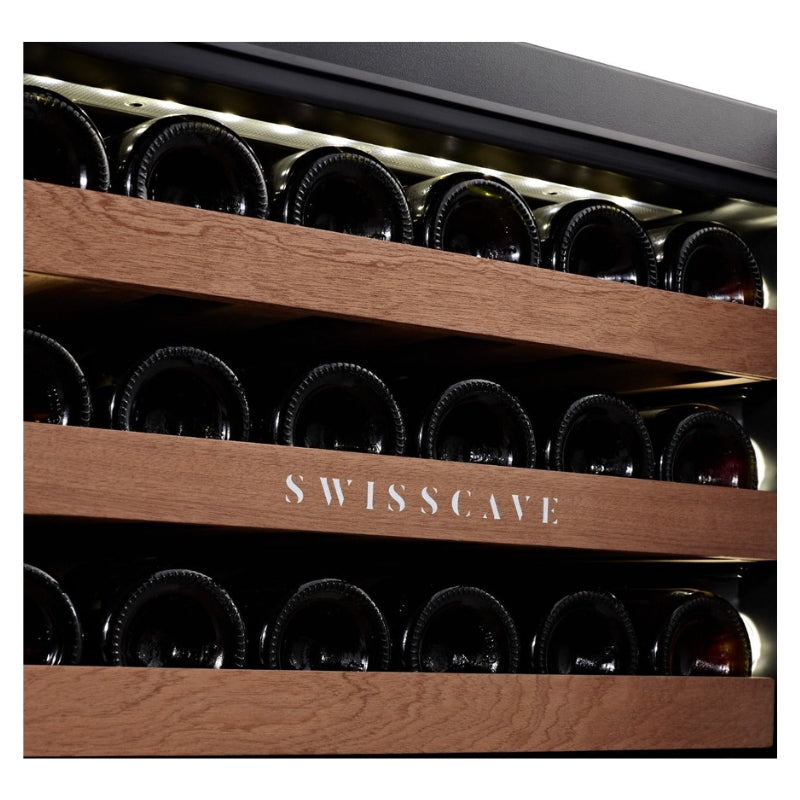

• Number of Shelves: 14 (Mahogany wood with attractive grip bars)
• Telescopic Shelves: Full extension on steel ball bearings (80%)
• Inside Casing: Black PUR
• Pull-Out Front Panels: Brushed anodised aluminium trims available in 5 colours
• Voltage: 230 V / 50 Hz
• Climate Classification: SN-T
• Volume: 246 L
• Optimal Usage: Tempering and storing

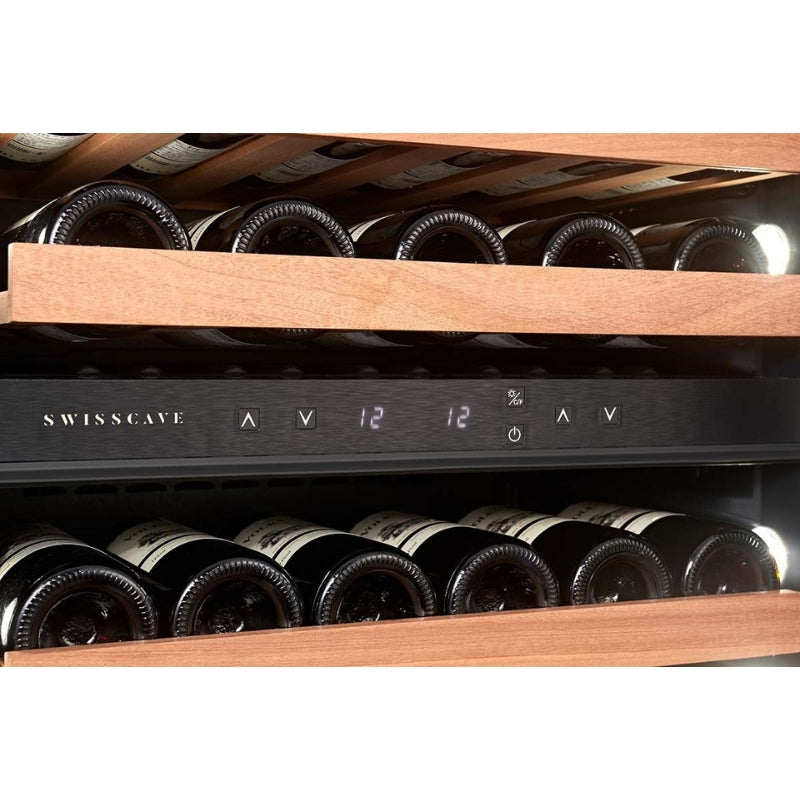

• User Interface: 2 digital displays (set and actual temperature)
• Cooling Technology: Combined fan and convection cooling
• Compressor: Embraco Full motion (speed-controlled)
• Coolant: R600a (environmentally friendly)
• Defrost Function: Automatic
• Space for Oversized Bottles: Yes, on top and bottom shelves (for 1.5L Magnum, 3L)
• Heating Function: Powerful winter heating (temperature and humidity may vary in heating mode)
• Active Carbon Filters: 2 for optimal air quality
• Temperature Memory Function: Yes (in case of power failure)
• Condensation Water Container: Yes
• Acoustic Alarms: Temperature and door alarms
• Vibration-Free Implementation: Yes
• Tilt Protection: Yes
• Feet Adjustable: Yes (to compensate for uneven floors)
• Power Cable Length: 2 m

Dimensions

• H 1816 mm x W 595 mm x D 571 mm
