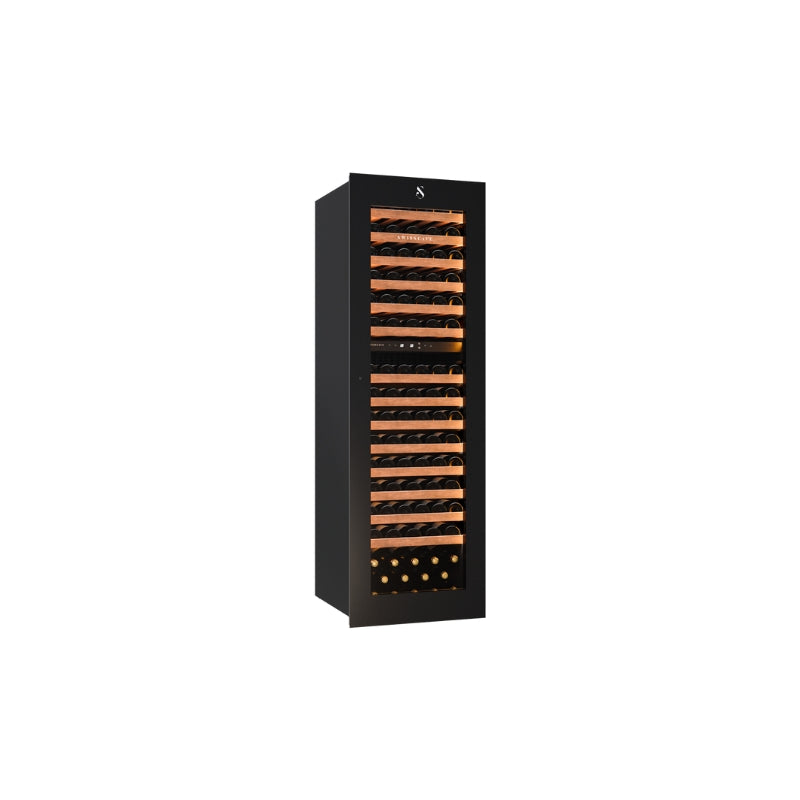

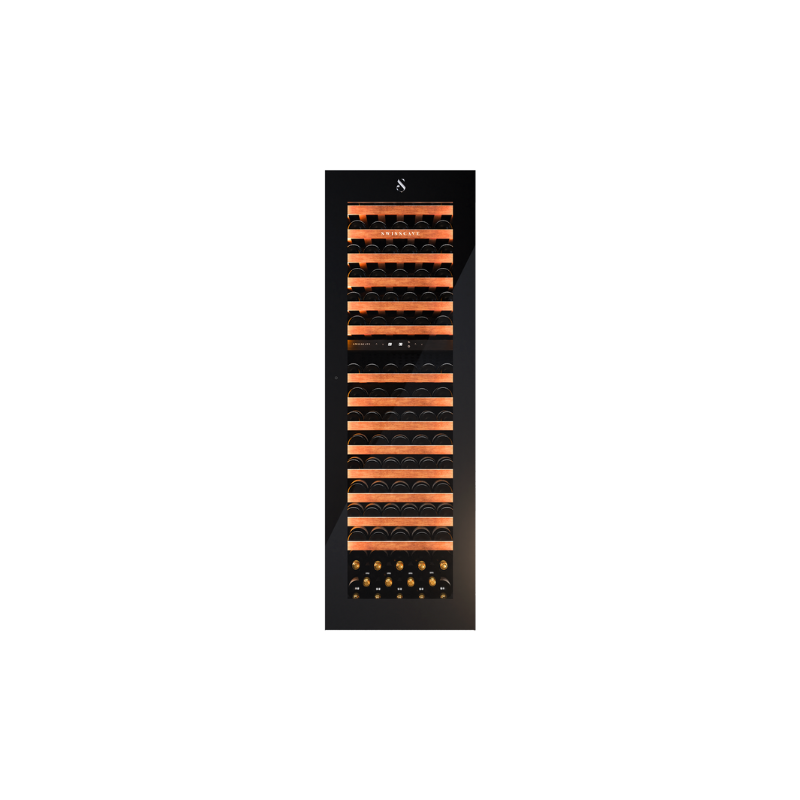

Swisscave Dual Zone Wine Cooler WIB178DFT

Swisscave dual zone wine fridge built in WIB-178DFT

Swisscave  meets the highest standards when it comes to storing and maturing wine, resulting in perfect pleasure when drinking it. For optimal wine presentation and temperature control in hotels, restaurants and wine shops (HORECA).Also great for ageing your finest bottles over the years at home. Whether in the kitchen, the lounge, storeroom or basement. Swisscave used wine connoisseurs with extensive expertise to design and test its wine cellars and coolers. Swisscave is famous worldwide for its high standards in functionality and practicality, and its simple, pure design. We paid special attention to the materials used to construct our products: glass, stainless steel, wood – plastic components are notable by their absence.

Warranty 5 years

Download Swisscave Manual

Download Built in Drawing

Download Loading View

Download Data Sheet

Product information

• Temperature Zones: 2
• Noise Level: 41 dB(A) sound-absorbing recommendation
• Bottle Capacity (Bordeaux shape, all shelves inserted): 101 bottles
• Bottle Capacity (Bordeaux shape, part of shelves removed): 101 bottles
• Humidity Recommendation: 50-70%
• Temperature Range (Upper Zone): 5°C - 20°C
• Temperature Range (Lower Zone): 5°C - 20°C
• Temperature Zones: 5°C - 16°C & 9°C - 20°C
• Power Consumption per Day: 0.44 kWh (approx.)
• Casing: Black coated steel
• Door Glazing: Fully glazed UV-resistant, gas-filled, low energy panes (3-layer glazing)
• Door Frame: Frameless (all glass)
• Door Lock: No

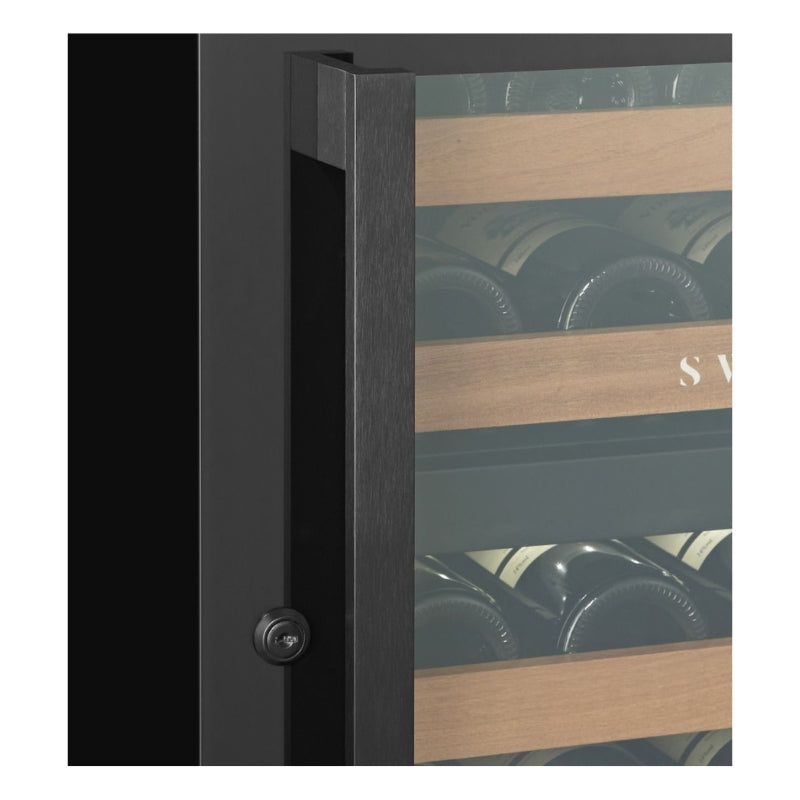

• Door Handle: Anodised, brushed aluminium
• Door Hinge: Right (convertible to left)

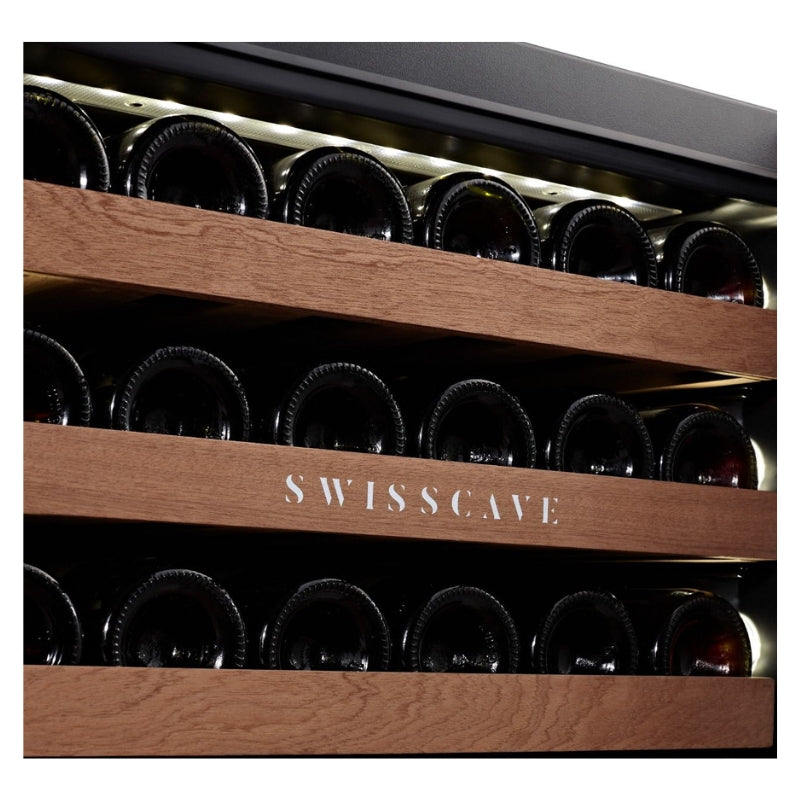

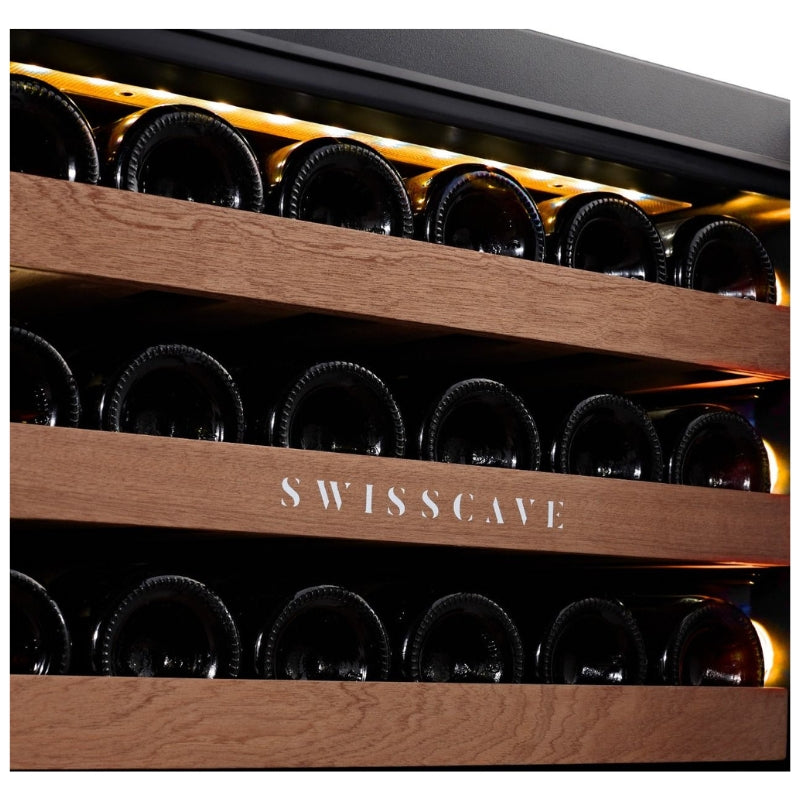

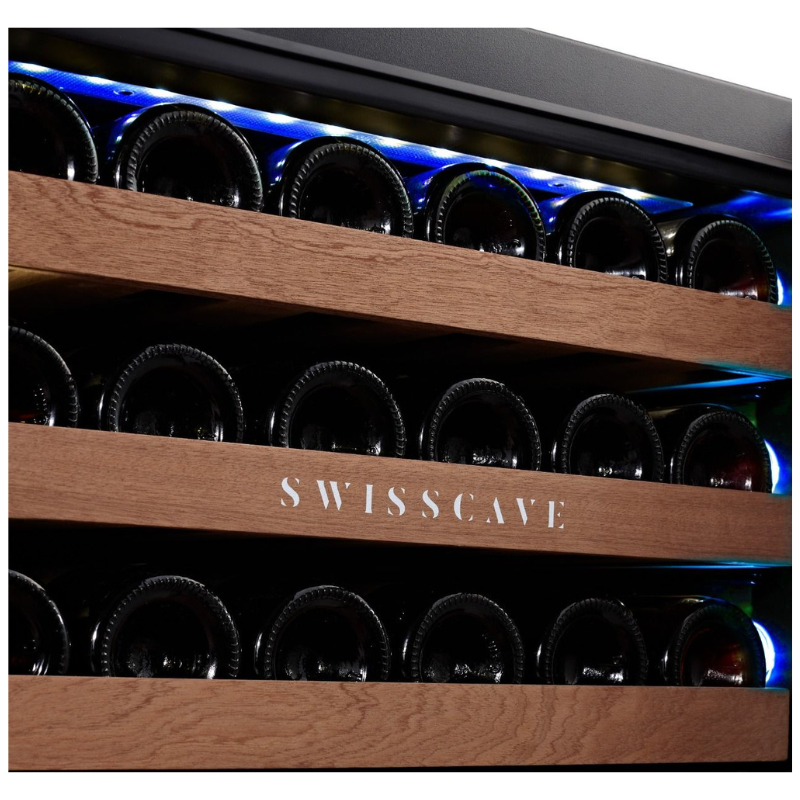

• Lighting: All-around illumination (white, blue, amber - adjustable)
• Lighting On/Off Switch: Yes
• Number of Shelves: 14 (Raw natural sapele (Mahogany) wooden display shelves with grip bars)
• Telescopic Shelves: Full extension on steel ball bearings (80%)
• Inside Casing: Black PUR
• Pull-Out Front Panels: Trims in brushed anodised aluminium available in 5 colours
• Voltage: 230 V / 50 Hz
• Climate Classification: SN-T
• Volume: 246 L
• Optimal Usage: Tempering and storing

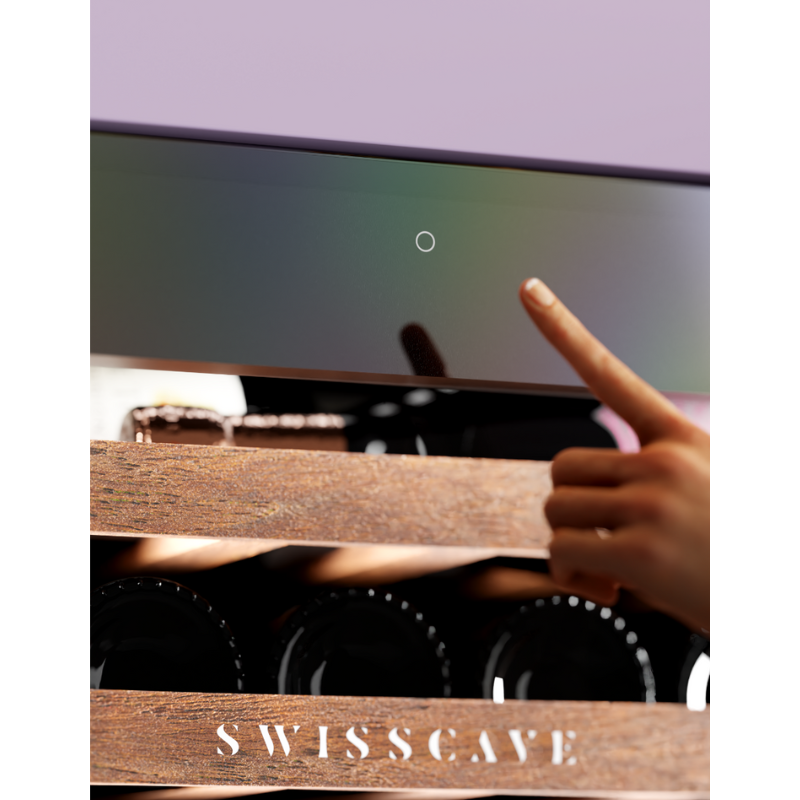

• User Interface: 2 digital displays (set and actual temperature)
• Fans: High-performance, low-noise fan technology
• Compressor: Embraco Full motion (speed-controlled)
• Coolant: R600a (environmentally friendly)
• Cooling System: Combined fan and convection cooling
• Defrost Function: Automatic
• Space for Oversized Bottles: Yes, on top and bottom shelves (for 1.5L Magnum, 3L)
• Heating Function: Powerful winter heating (temperature and humidity may vary in heating mode)
• Active Carbon Filters: Yes (2 for optimal air quality)
• Temperature Memory Function: Yes (in case of power failure)
• Condensation Water Container: Yes
• Acoustic Alarms: Temperature and door alarms
• Vibration-Free Implementation: Yes
• Tilt Protection: Yes
• Feet Adjustable: Yes (to compensate for uneven floors)
• Power Cable Length: 2 m

Dimensions

• H 1816 mm x W 595 mm x D 571 mm
