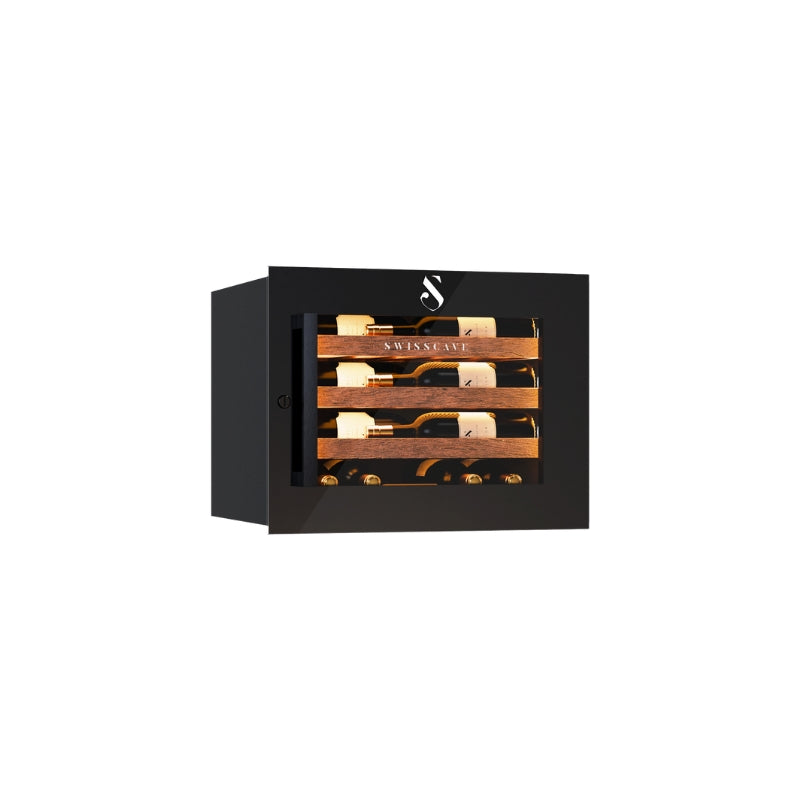

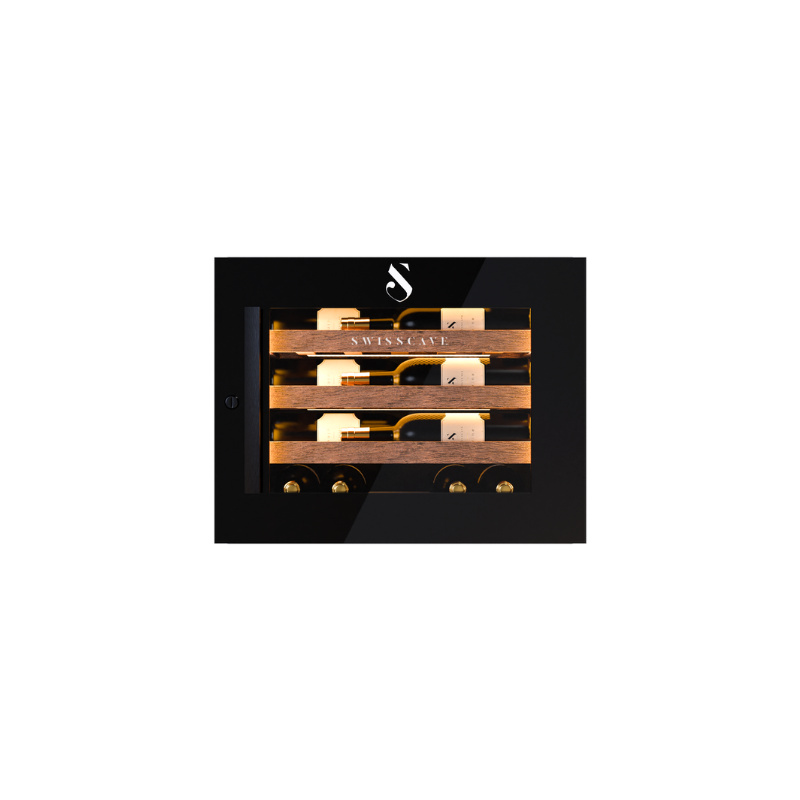

Swisscave Single Zone Wine Cooler WIB45F

Swisscave single zone wine fridge built in WIB-45F

Swisscave meets the highest standards when it comes to storing and maturing wine, resulting in perfect pleasure when drinking it. For optimal wine presentation and temperature control in hotels, restaurants and wine shops (HORECA).Also great for ageing your finest bottles over the years at home. Whether in the kitchen, the lounge, storeroom or basement. Swisscave used wine connoisseurs with extensive expertise to design and test its wine cellars and coolers. Swisscave is famous worldwide for its high standards in functionality and practicality, and its simple, pure design. We paid special attention to the materials used to construct our products: glass, stainless steel, wood – plastic components are notable by their absence.

Warranty 5 years

Download Swisscave Manual

Download Loading View

Download Data Sheet

Download Built In Drawing

Product information

• Temperature Zones: 1
• Bottle Capacity (Bordeaux Shape, All Shelves Inserted): 22
• Bottle Capacity (Bordeaux Shape, Part of Shelves Removed): 24
• Humidity Recommendation: 50-70%
• Temperature Zones: (5°C - 20°C)
• Noise Level: 39 dB(A) Sound-Absorbing Recommendation
• Power Consumption Per Day: 0.32 kWh (Approx.)
• Casing: Black Coated Steel
• Door Glazing: Fully Glazed UV-Resistant, Gas-Filled, With Low-Energy Panes (Double Glazed)
• Door Frame: Frameless (All Glass)

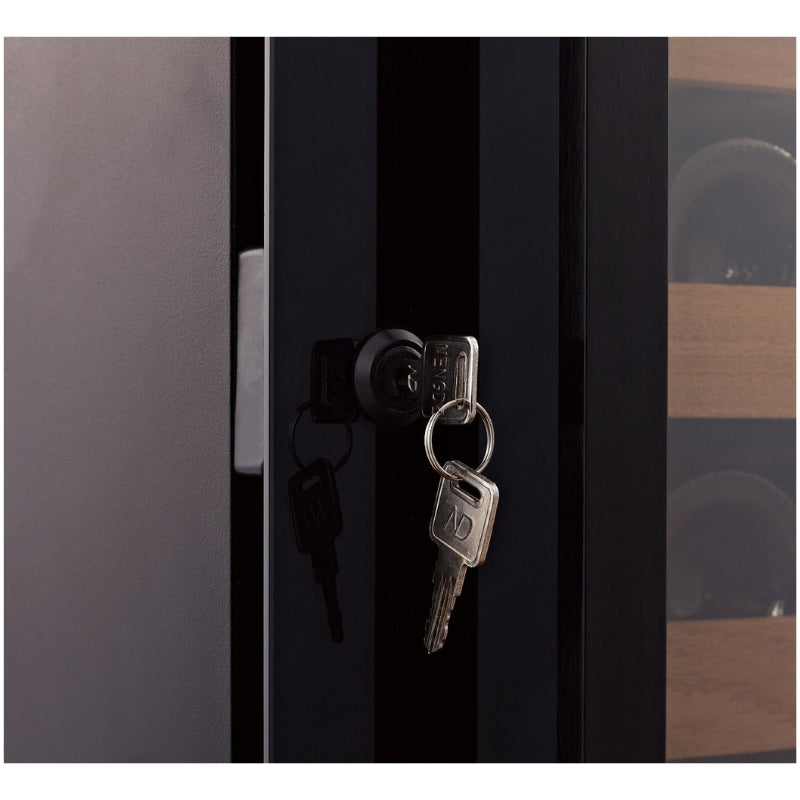

• Door Lock: Yes

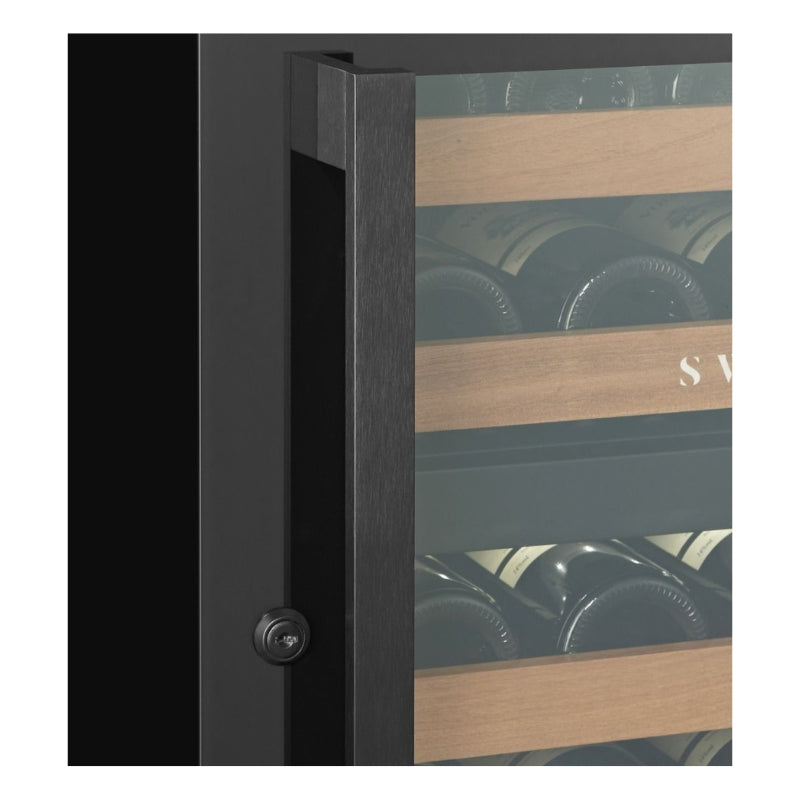

• Door Handle: Anodised, Brushed Aluminium
• Door Hinge: Right (Convertible to Left)

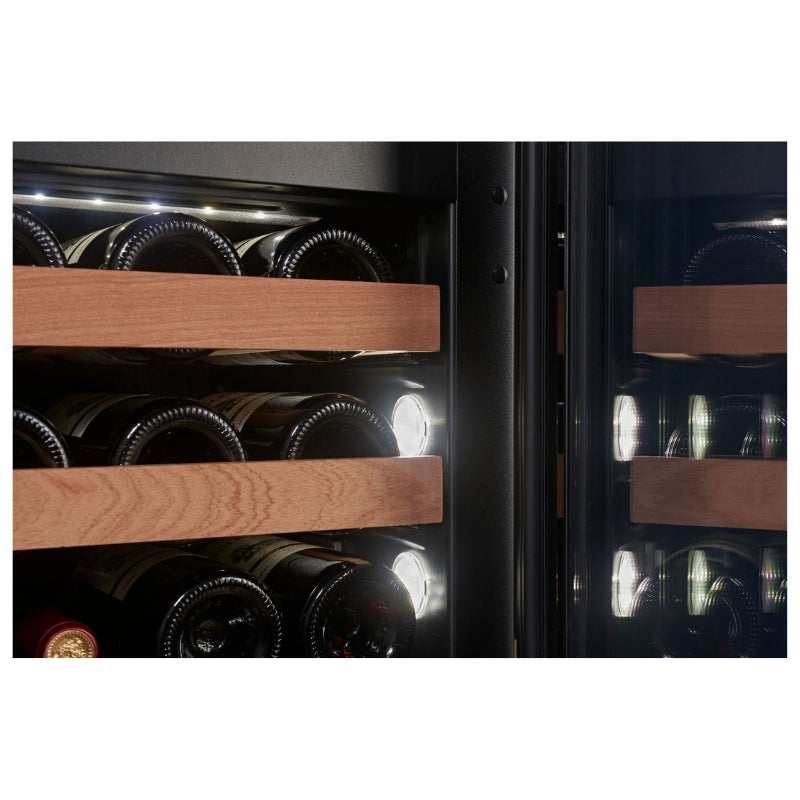

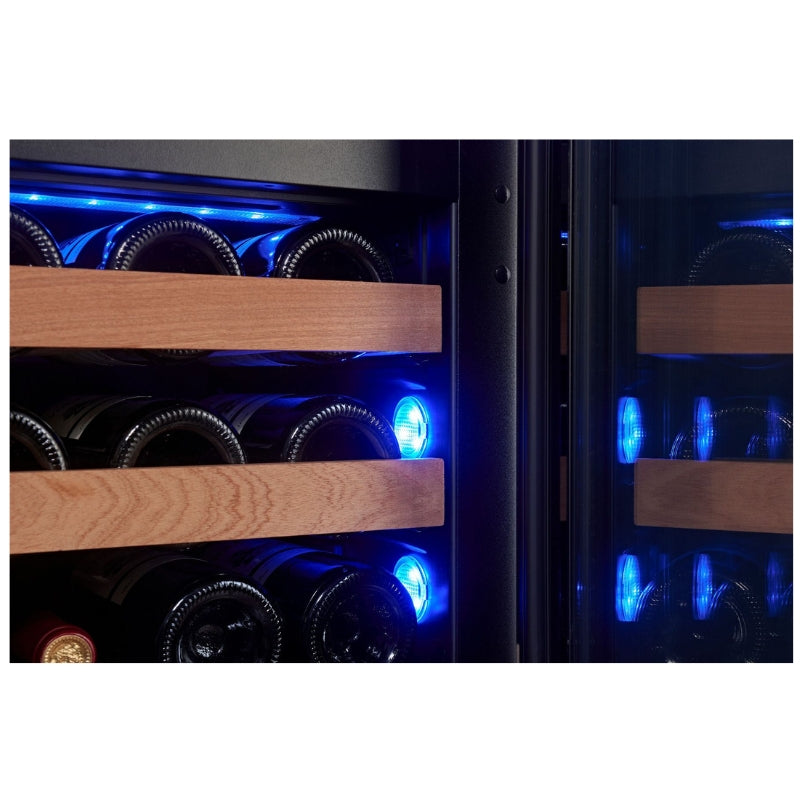

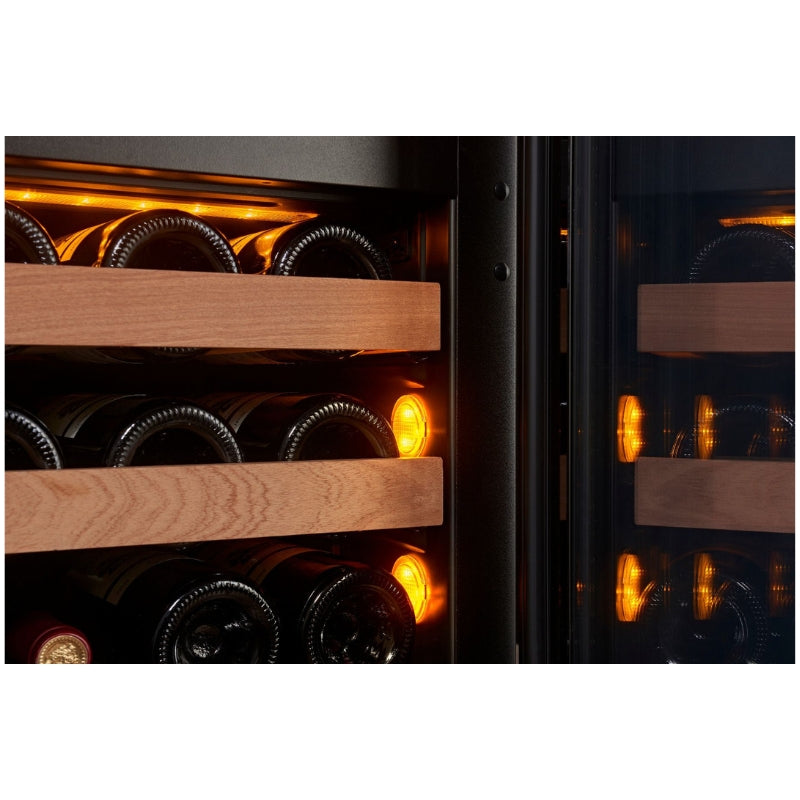

• Lighting: White All-Round Lighting with On/Off Switch
• Number Of Shelves Total: 3
• Shelf Material: Raw Natural Sapele (Mahogany) Wooden Display Shelves with Grip Bars
• Telescopic Shelves On Extendable Steel Ball Bearings: Full Extension Shelves (80%)
• Inside Casing: Black PUR
• Pull-Out Front Panels: Trims In Brushed Anodised Aluminium Available In 5 Colours
• Voltage: 230 V / 50 Hz
• Climate Classification: SN-T
• Volume: 51 L
• Optimal Usage: Tempering and Storing
• User Interface: 2 Digital Displays (Set and Actual Temperature)
• Fans: High-Performance, Low-Noise Fan Technology
• Compressor: JP-STD
• Coolant: R600a (Environment Friendly)
• Cooling System: Combined Fan And Convection Cooling
• Defrost Function: Automatic
• Space For Oversized Bottles (E.G. 1.5Lt. Magnum, 3Lt.): On Top and Bottom Shelf
• Heating: Powerful Winter Heating Function (*In Heating Mode, Temperature And Humidity Values May Vary)
• Active Carbon Filters: Yes (Ensuring Optimal Air Quality)
• Temperature Memory Function: Yes (Power Failure)
• Condensation Water Container: Yes
• Acoustic Temperature Alarm: Yes
• Acoustic Door Alarm: Yes
• Vibration Free Implementation: Yes
• Tilt Protection: Yes
• Feet Adjustable To Compensate Uneven Floors: Yes
• Power Cable Length: 2 M

Dimensions

• H 595 mm x W 590 mm x  D 570  mm
